Obs-Buoy 7 Watt

Your real-time wave observation solution.

OBS-BUOY ^{7 WATT}

About the
OBS-BUOY ^{7 WATT}

The OBS–BUOY ^{7 WATT} is a versatile wave buoy designed to meet the observational needs of various users. Engineered for reliability and ease of use, it features advanced sensor technology and a user-friendly design. Powered by solar energy for long-term operation, it provides accurate data through a free Data Portal. The OBS–BUOY ^{7 WATT} employs a combination of motion sensors and an electronic compass to measure the directional wave field with high accuracy. This results in the directional wave spectrum and all parameters derived from it.

The Obscape Data Portal is free to use with any Obscape device you purchase, giving you lifetime access at no extra cost – YOUR DEVICE, YOUR DATA. Find out more about the Obscape Data Portal HERE.

Key Specifications

Solar powered (7 Watt)
500 mm diameter x 350 mm height
Weight - 15 kgs
Reserve buoyancy - 21.2 kgs
Cellular and SATCOM data transfer
Bulk wave parameters
Directional wave spectrum data
Navigation light

Easy and quick setup

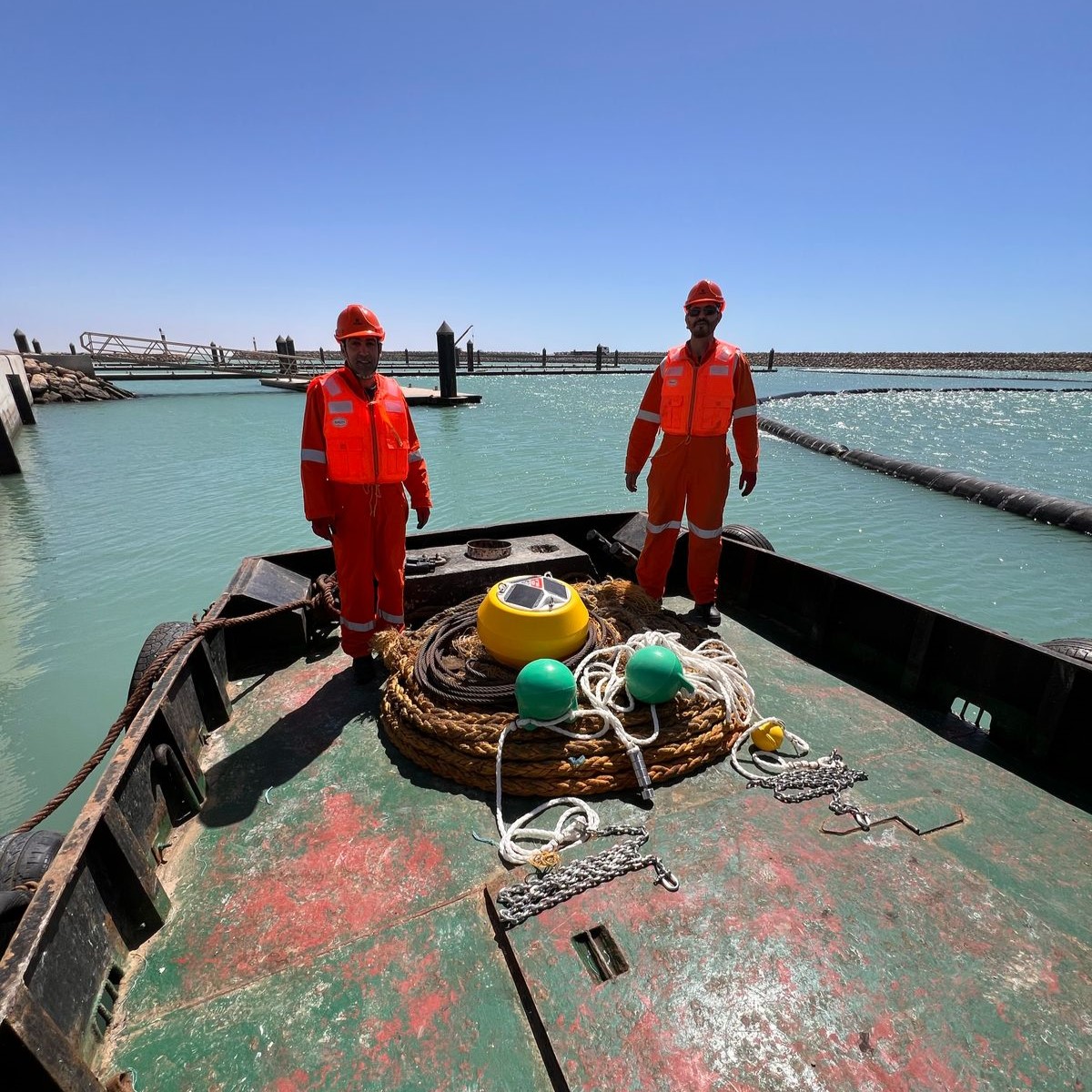

Deployment of the OBS–BUOY ^{7 WATT} is simple and can be done by hand. On-board cellular and satellite communication ensure a stable real-time data connection. The use of GPS positioning combined with automated status notifications ensure reliability and reduced downtime.

From Loading… excl. VAT

Purchase includes: 3 months SATCOM line rental with 5000 SATCOM credits, SD card

Accessories: OBS-BUOY mooring Global sim and credits

Need more info >>

How does the OBS-BUOY 7 WATT work?

The OBS–BUOY ^{7 WATT} combines motion sensors and an electronic compass to collect data on the directional wave field. The data is then transmitted to the free Obscape Data Portal, where users can access it in real-time.

Is the OBS-BUOY 7 WATT easy to install and maintain?

Yes, the OBS–BUOY ^{7 WATT} is designed for ease of use. It is compact and lightweight (15 kgs), making installation easy. It is solar-powered, so it requires minimal maintenance, and its user-friendly interface makes installation and setup quick and straightforward.

How do I access the data from the OBS-BUOY 7 WATT?

Once the OBS–BUOY ^{7 WATT} is set up, data is automatically transmitted to the Obscape Data Portal, where you can access it anytime through your personal account.

How often does the OBS-BUOY 7 WATT need maintenance?

Every 3 – 6 months depending on the rate of bio foul growth on the buoy at your deployment location.

Whats the diffence between the OBS-BUOY 400 and the OBS-BUOY 7 WATT?

The OBS–BUOY ^{7 WATT} is a larger buoy compared to the OBS–BUOY ⁴⁰⁰. It is solar-powered and offers both cellular data transfer and SATCOM capabilities. In contrast, the OBS–BUOY ⁴⁰⁰ is battery-powered and supports only cellular data transfer.
